Introduction

This guide explains how to set up the @react-form-builder/components-google-map package with autocomplete functionality for address fields.

​
Set up the Google Maps component with Autocomplete

  • In your form definition, add a GoogleMap component to display the map.
  • Fill the API key property with your Google Maps API key.
  • Enable the Show Map Control property to show map control options.

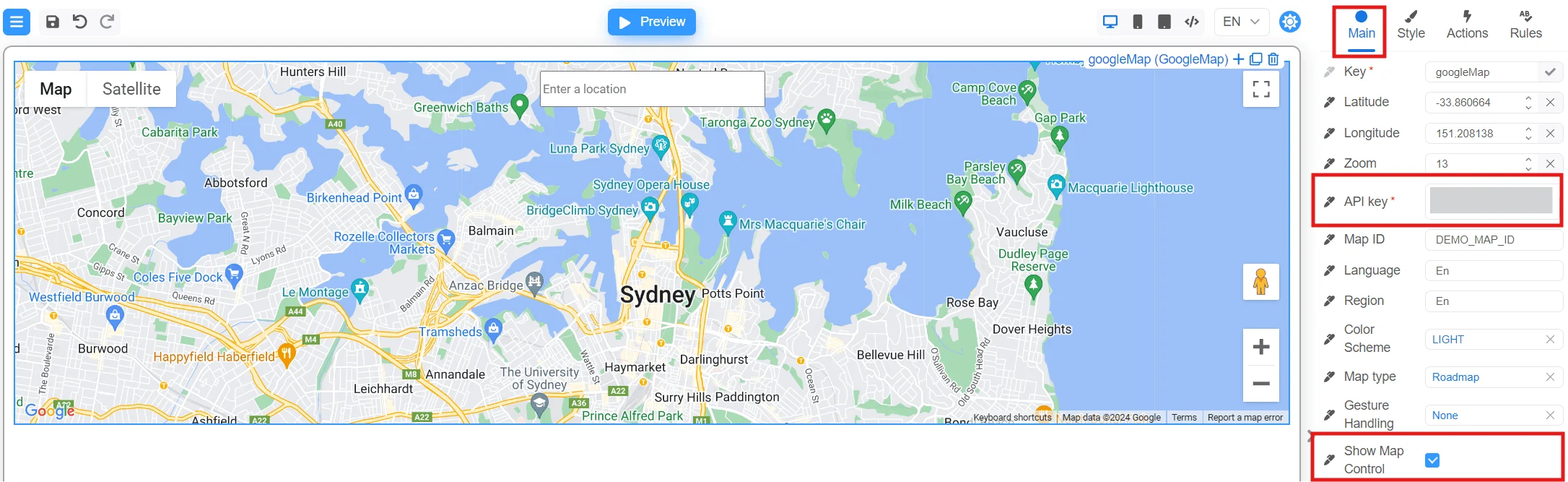

MapProperties

​
Add required input fields for address details

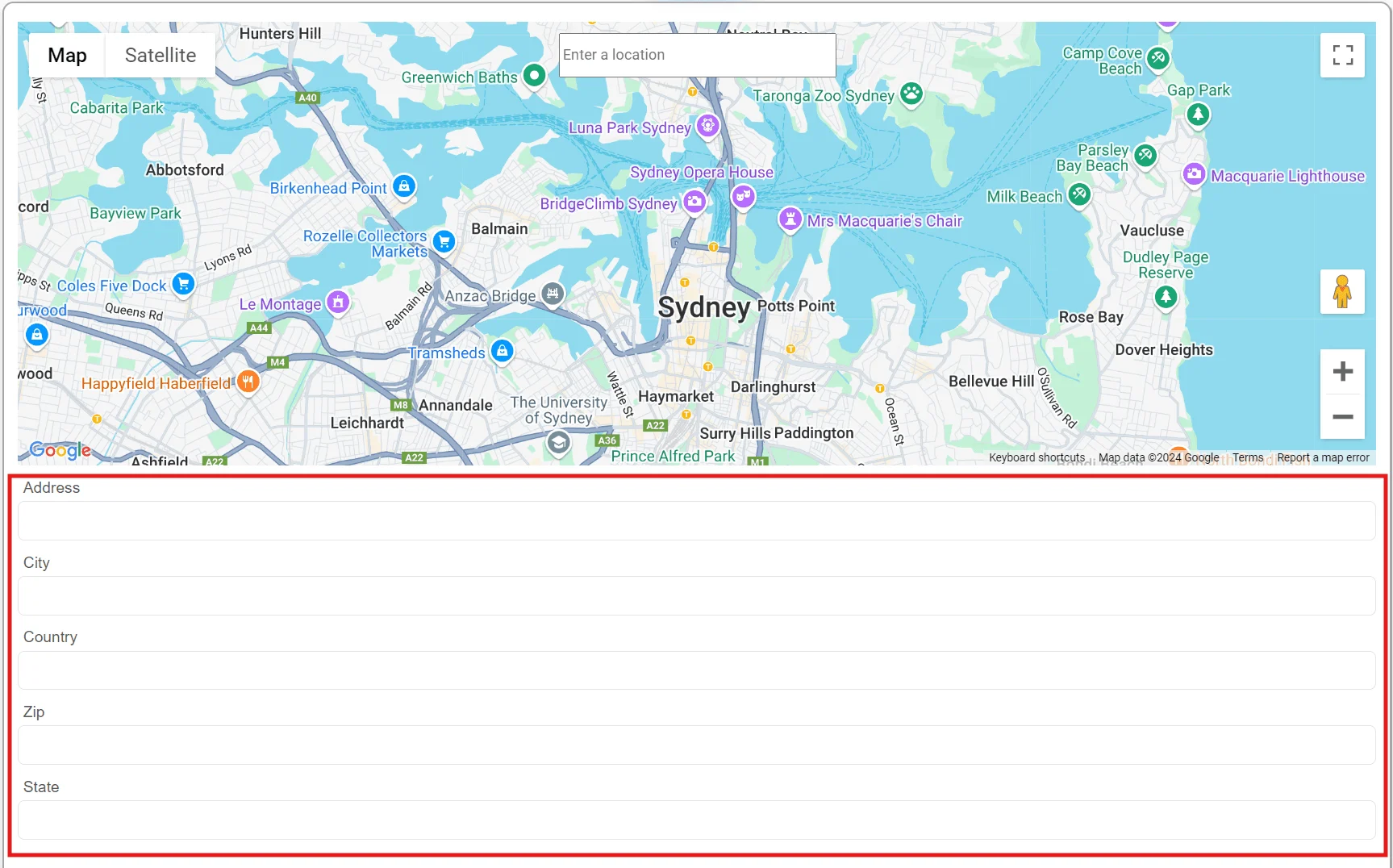

After creating the GoogleMap component, add only the necessary Input components for each part of the address that you need, such as Address, City, Country, ZIP, and State. AddressInputs

​
Define an action to populate the address fields

  • Select the map component in Designer.
  • Go to the Actions tab.
  • Create a new code action for the onPlaceSelect event.
  • Choose the newly created action to handle address population.

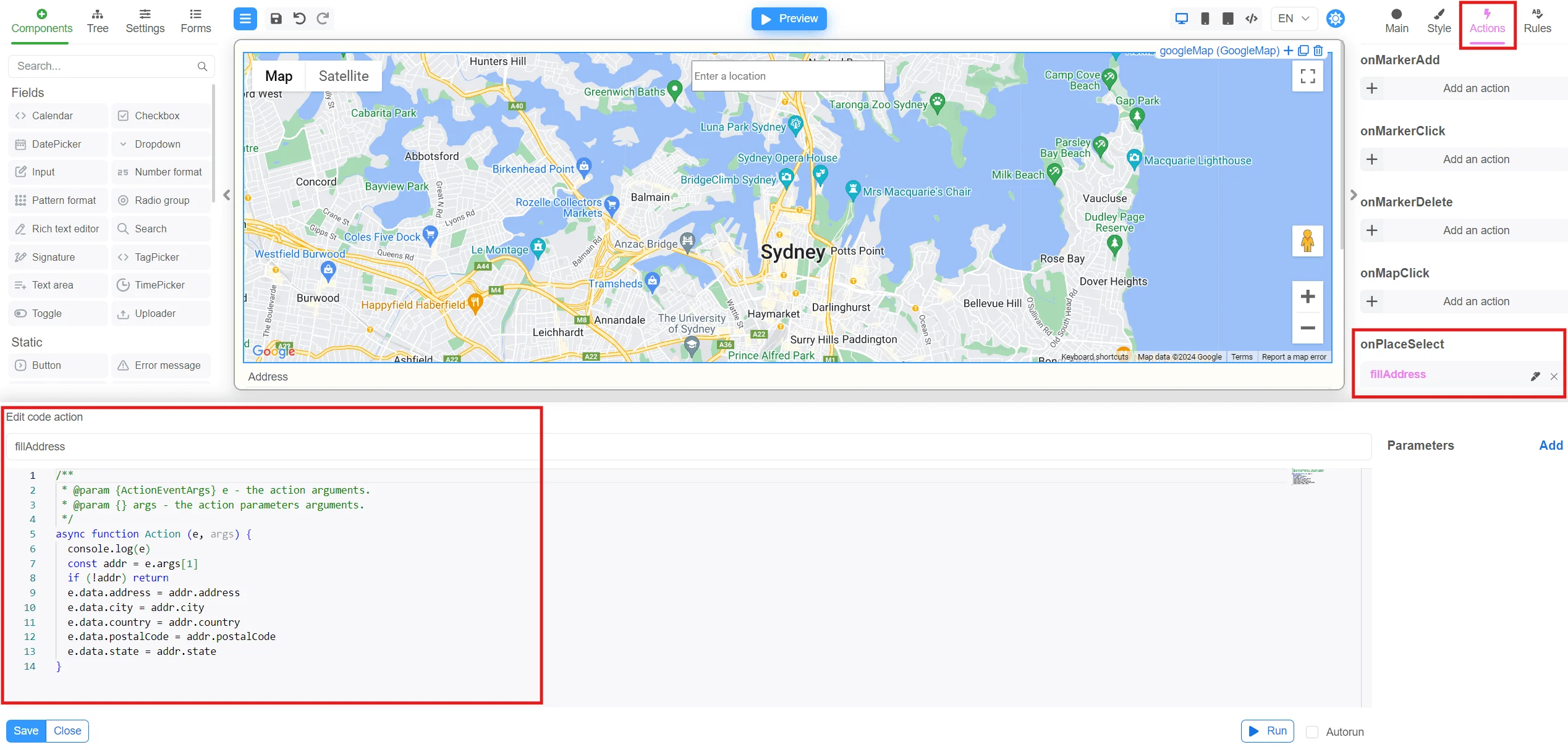

MapOnPlaceSelectAction Here’s the sample action code where we fill in the form data to populate the address input fields:
/**
 * @param {ActionEventArgs} e - the action arguments.
 * @param {} args - the action parameters arguments.
 */
async function Action(e, args) {
  console.log(e);
  const addr = e.args[1];
  if (!addr) return;
  e.data.address = addr.address;
  e.data.city = addr.city;
  e.data.country = addr.country;
  e.data.postalCode = addr.postalCode;
  e.data.state = addr.state;
}
This action listens to the onPlaceSelect event from the GoogleMap component and updates the fields with the relevant address details. Now, as you enter an address in the Google Maps search bar and make a selection, the input fields automatically populate with the correct values for each part of the address.

​
Map JSON form example

MapForm.json
{
  "version": "1",
  "actions": {
    "fillAddress": {
      "body": "  console.log(e)\n  const addr = e.args[1]\n  if (!addr) return\n  e.data.address = addr.address\n  e.data.city = addr.city\n  e.data.country = addr.country\n  e.data.postalCode = addr.postalCode\n  e.data.state = addr.state",
      "params": {}
    }
  },
  "form": {
    "key": "Screen",
    "type": "Screen",
    "props": {},
    "children": [
      {
        "key": "googleMap",
        "type": "GoogleMap",
        "props": {
          "apiKey": {
            "value": "Your Google Map Api Key"
          },
          "mapId": {
            "value": "DEMO_MAP_ID"
          },
          "addMarkerOnSearch": {
            "value": true
          },
          "allowChangingMarkers": {
            "value": true
          },
          "allowMultipleMarkers": {
            "value": true
          },
          "showMapControl": {
            "value": true
          },
          "gestureHandling": {
            "value": "none"
          },
          "language": {
            "value": "En"
          },
          "region": {
            "value": "En"
          },
          "colorScheme": {
            "value": "LIGHT"
          },
          "mapTypeId": {
            "value": "roadmap"
          }
        },
        "events": {
          "onPlaceSelect": [
            {
              "name": "fillAddress",
              "type": "code"
            }
          ]
        }
      },
      {
        "key": "rsContainer1",
        "type": "RsContainer",
        "props": {},
        "children": [
          {
            "key": "address",
            "type": "RsInput",
            "props": {
              "label": {
                "value": "Address"
              }
            }
          },
          {
            "key": "city",
            "type": "RsInput",
            "props": {
              "label": {
                "value": "City"
              }
            }
          },
          {
            "key": "country",
            "type": "RsInput",
            "props": {
              "label": {
                "value": "Country"
              }
            }
          },
          {
            "key": "postalCode",
            "type": "RsInput",
            "props": {
              "label": {
                "value": "ZIP"
              }
            }
          },
          {
            "key": "state",
            "type": "RsInput",
            "props": {
              "label": {
                "value": "State"
              }
            }
          }
        ]
      }
    ]
  },
  "localization": {},
  "languages": [
    {
      "code": "en",
      "dialect": "US",
      "name": "English",
      "description": "American English",
      "bidi": "ltr"
    }
  ],
  "defaultLanguage": "en-US"
}

​
