Overview

Styling of components in Form Builder is quite simple - you can customize styles for a component on the “Style” tab. The styles will be compiled into a CSS class. The name of this CSS class will be passed to the component’s rendering function as the className property. Also, you can to set different styles for different layouts.

Structure

Each component (except Containers) in the form is placed in an outer wrapper, a tooltip and a wrapper for displaying errors during rendering. This is what the nesting structure of a regular component looks like:

<Wrapper className="wrapperCss">
  <Tooltip>
    <ErrorWrapper>
      <Component className="componentCss"/>
    </ErrorWrapper>
  </Tooltip>
</Wrapper>

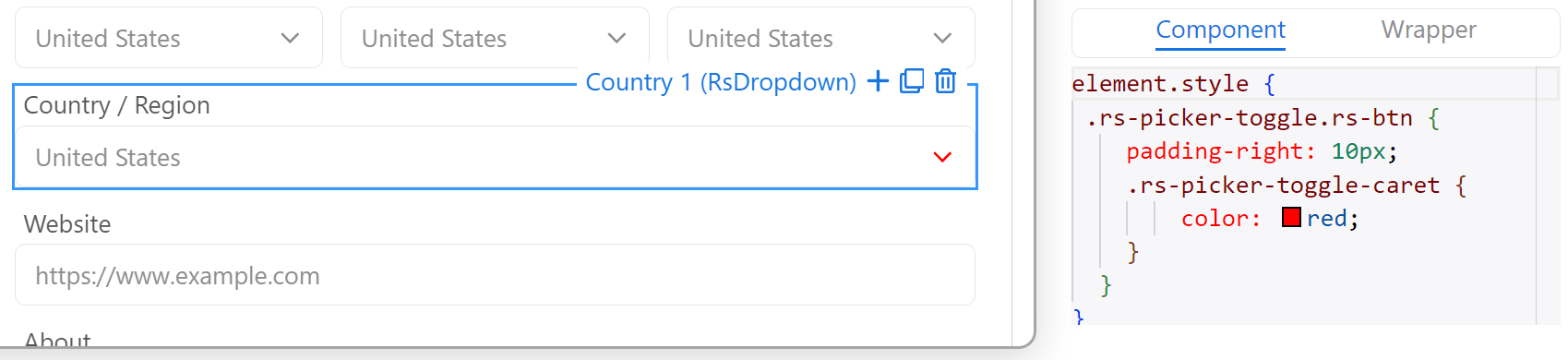

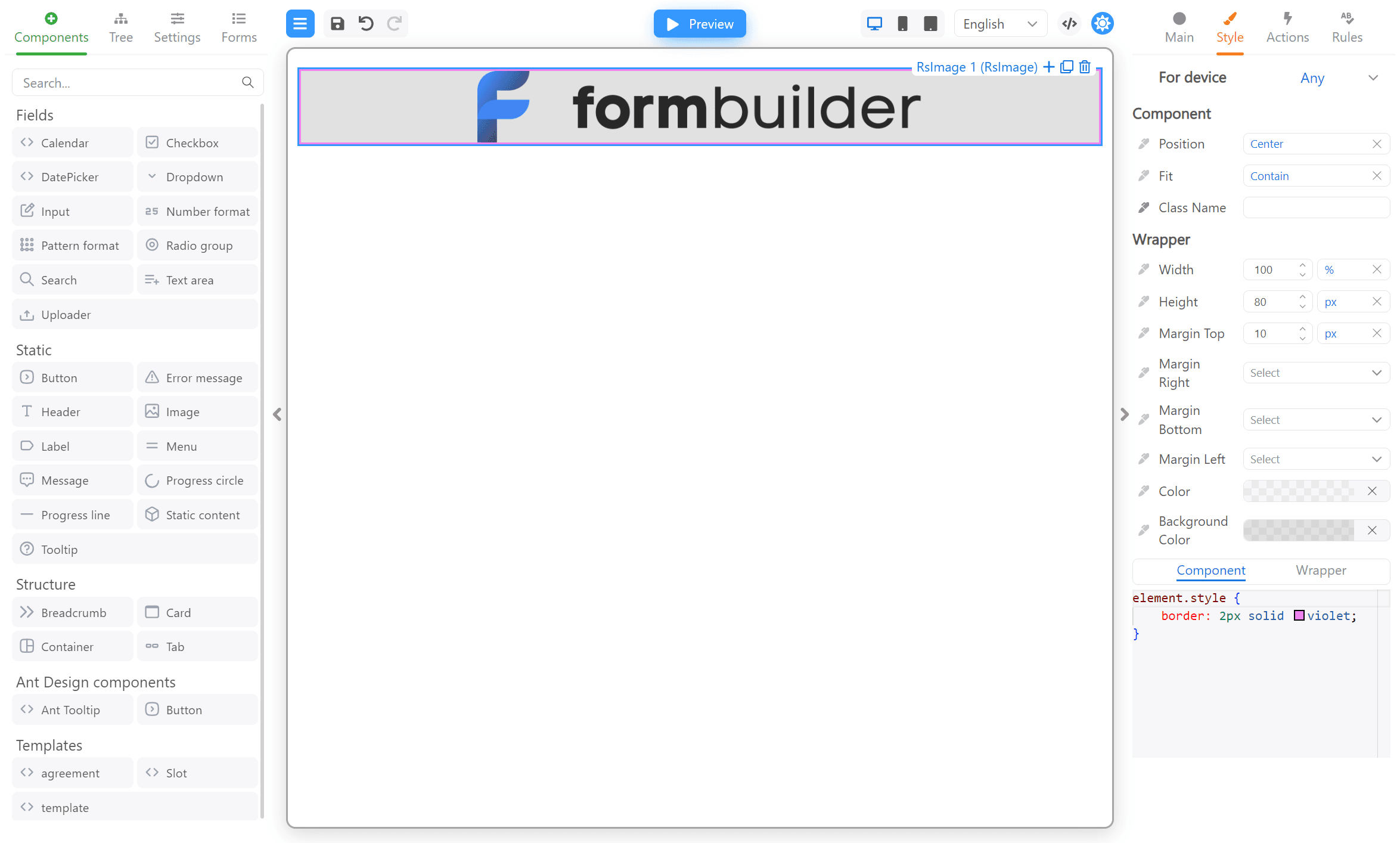

Styles specific to different HTML elements (for example font-size for the Label component or fit for the Image component) are applied directly to it. These properties can be edited on the Style tab, under the Component heading. The sizing, padding, positioning and other styles inherent in all components are applied to the outer wrapper of the component. They are located under the Wrapper heading. You can also enter the CSS code for the component or wrapper into the editor at the bottom. There you can use all CSS properties such selectors, pseudo-classes, etc.

The Container components has no outer wrappers, and all styles are attached to it:

<Container className="css">
  {children}
</Container>

Styling a header component

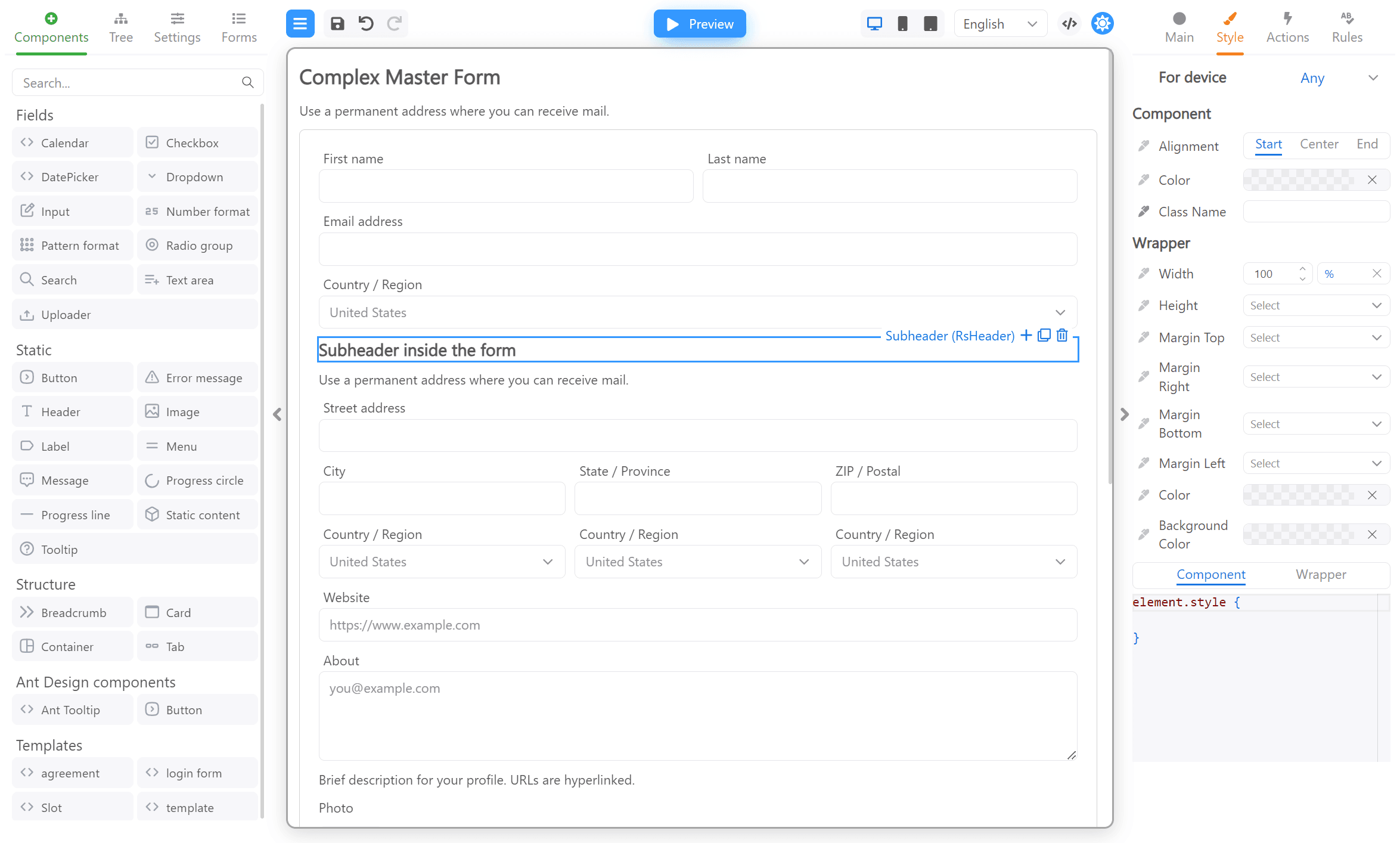

Stylize the simple Header component on the demo page. Open a browser at demo.formengine.io. Select the Subheader component and click on the “Style” tab as in the screenshot below:

Now select the “Center” value in the “Alignment” property. In the Component style code editor, copy the value of the selected lines:

element.style {
  // highlight-start
  font-size: 48px;
  padding: 20px;
  color: rgba(0, 3, 4, 0.596);
  background: linear-gradient(0.25turn, #3f87a6, #ebf8e1, #f69d3c);
  // highlight-end
}

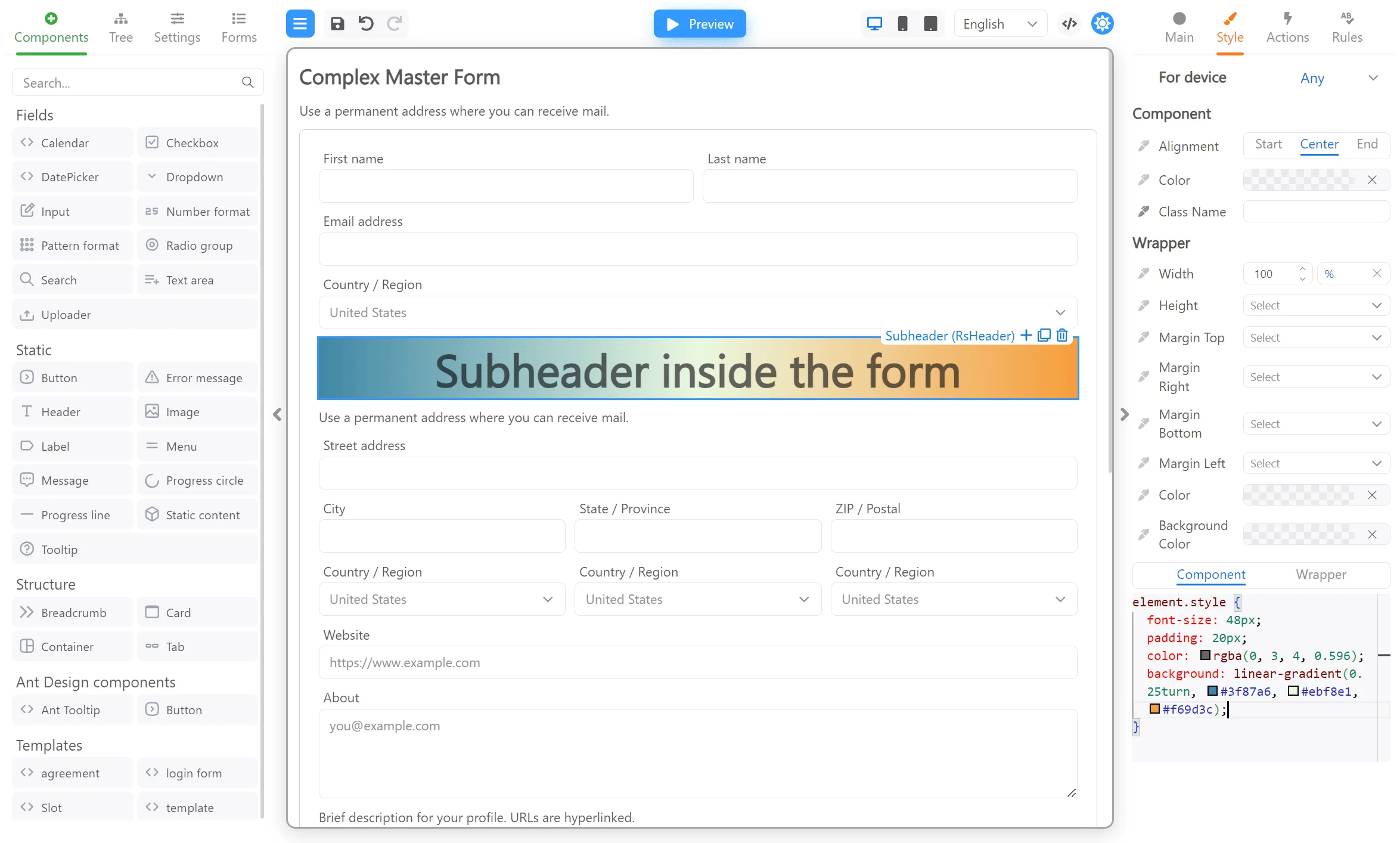

As a result, the component will be styled roughly as in the screenshot:

Now let’s look at how styling works for custom components.

Styling a simple component

First, let’s make a simple component that will render div:

StyledDiv.tsx

export interface StyledDivProps {
  children?: ReactNode
  // highlight-next-line
  className?: string
}

export const StyledDiv = (props: StyledDivProps) => {
  return <div
    // highlight-next-line
    className={props.className}
    // highlight-next-line
    style={{flex: 1}}
  >{props.children}</div>
}

export const styledDiv = define(StyledDiv, 'StyledDiv')
  .name('StyledDiv')

In the properties of the StyledDivProps component, the className property is defined, which is responsible for the name of the CSS class. In the component’s rendering function, the className property was passed to div. It’s simple. Let’s add a component to the application. For simplicity, we will have a designer with only one component:

App.tsx

const builderView = new BuilderView([styledDiv.build()])

export const App = () => {
  return <FormBuilder view={builderView}/>
}

export default App

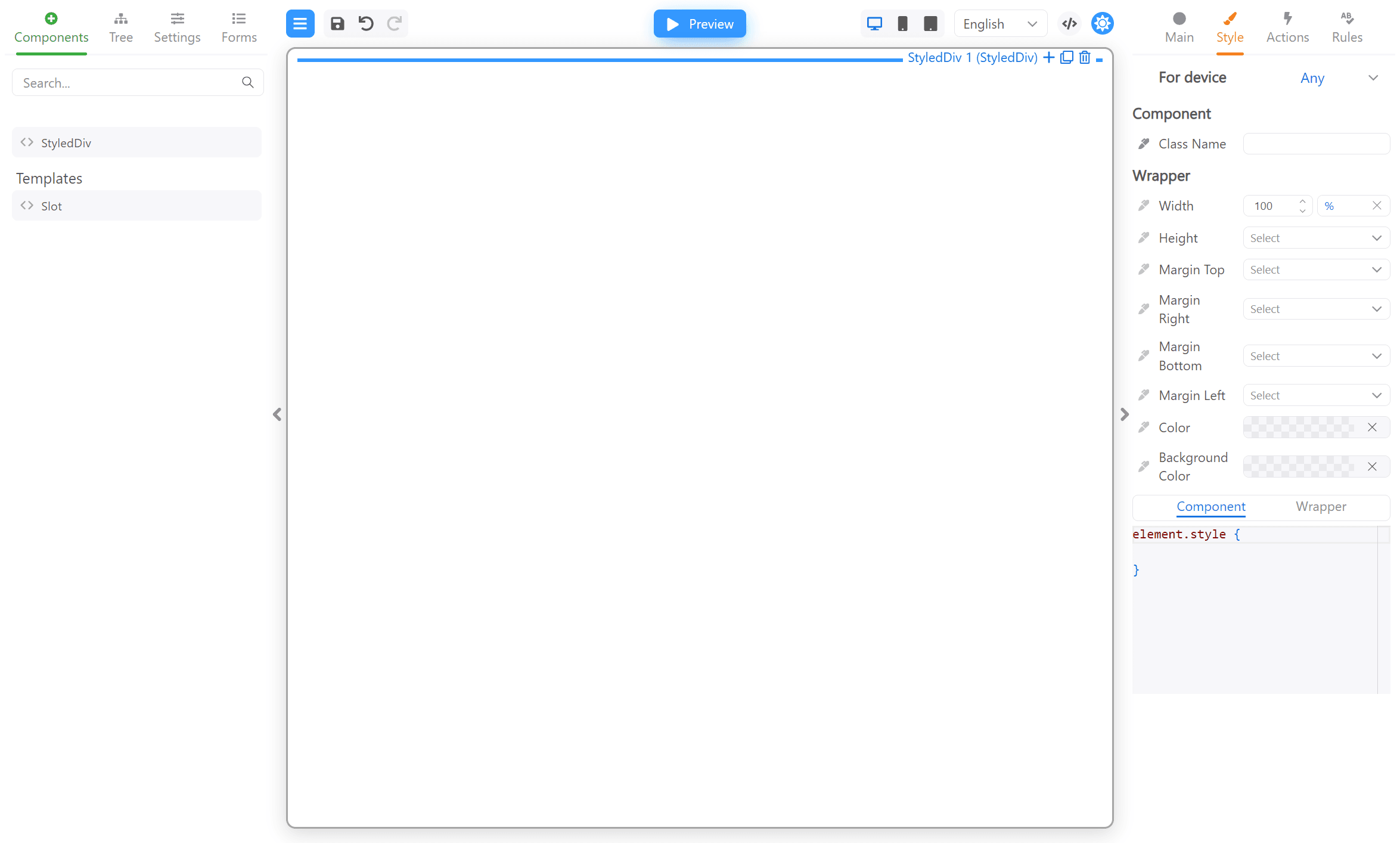

Open your application and add the StyledDiv component to the form. Then switch to the “Styled” tab in the right pane. You should see something like this:

Custom style properties

You can also bind CSS properties using the css annotation. Take a look at the code below:

StyledDiv.tsx

//...

export const styledDiv = define(StyledDiv, 'StyledDiv')
  .name('StyledDiv')
  // highlight-start
  .css({
    borderStyle: oneOf('solid', 'dashed', 'dotted', 'double', 'center', 'groove').default('solid'),
    borderWidth: size.default('1px'),
    borderRadius: number.default(0),
    borderColor: color.default('black'),
    textAlign: oneOf('start', 'end', 'left', 'right', 'center', 'justify')
  })
// highlight-end

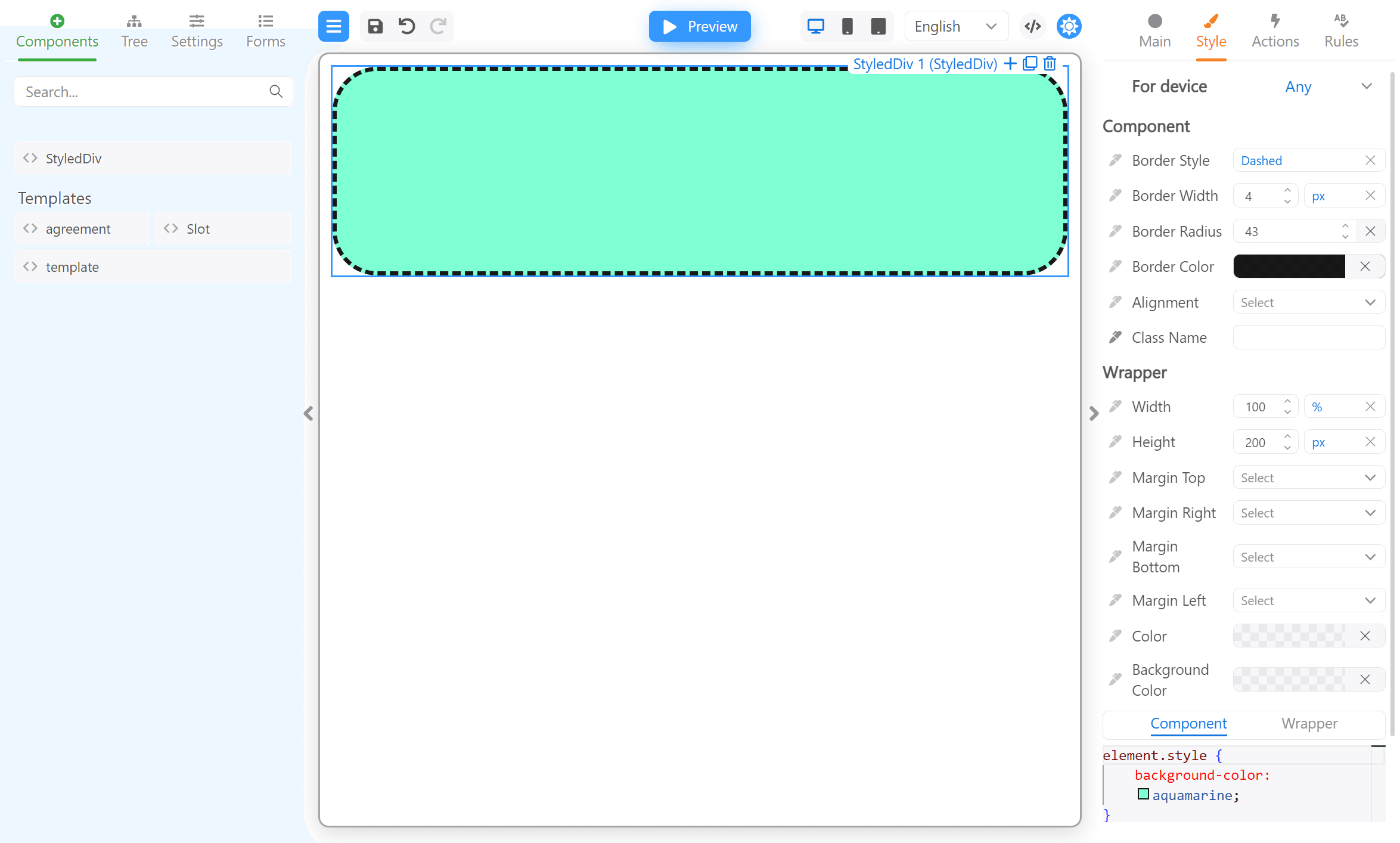

Use the css annotation to describe the CSS styles of the component for the designer. After description is added - the style editors will appear on the “Style” tab:

Passing styles to the style attribute

In some rare cases, you may need to pass CSS styles to the style property of a component. For example, a base component does not support the className property, but can accept styles via the style property. Or perhaps you want to pass some styles via the className property and some via the style property. By default, the editor for the style property is hidden, while the editor for the className property is displayed. You can change the display of these editors using the showInlineStylesEditor and showClassNameStylesEditor methods, respectively.

Component example

export const MyButton = (props: ButtonProps) => {
  return <Button {...props}/>
}

export const myButton = define(MyButton, 'MyButton')
  .name('My button')
  .props({
    children: string.required.named('Content').default('Button'),
  })
  .showClassNameStylesEditor(false)
  .showInlineStylesEditor(true)

Styles will be compiled from CSS into CSSProperties and passed to the component’s style property.

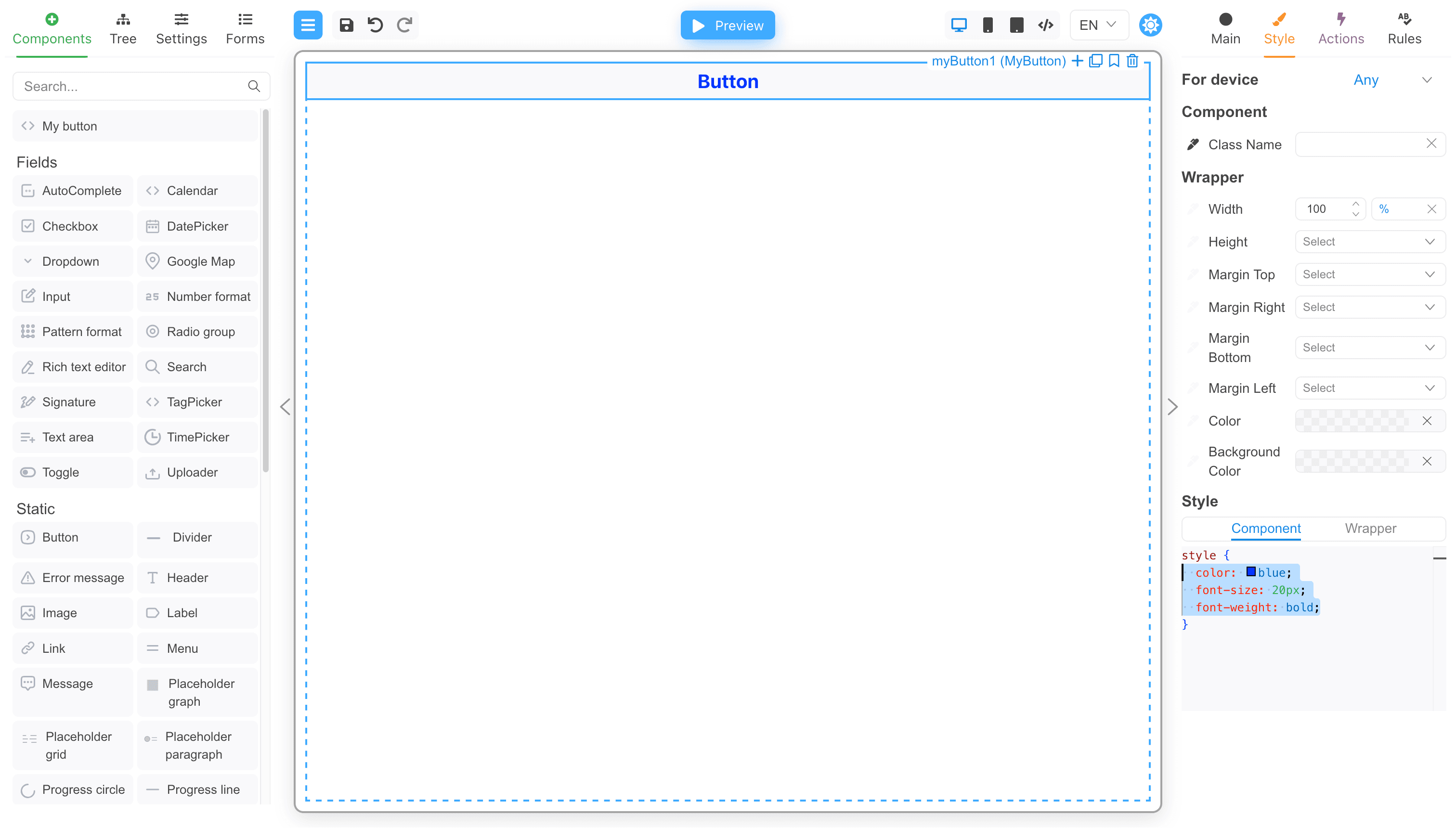

Component styled with the style property

Next steps

Designer Customization — Learn advanced customization options
Core Styling — Apply styles in FormEngine Core runtime
